Rental 1000cd/m2 P3.91 Indoor Full Color LED Display 200W

Product Categories
Shenzhen DDW Technology Co., Ltd.
Contact Now

Rental 1000cd/m2 P3.91 Indoor Full Color LED Display 200W

Brand Name : DDW

Certification : CE/ROHS/FCC/UL/ISO/3C

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : Bank T/T transfer, Western Union

Supply Ability : 6000sqm/month

Delivery Time : 7-20 days

Refresh Rate : >1920Hz

Horizontal Viewing Angle : 160º

Cabinet Size(L×W×H)mm : 500mm×1000mm×90mm

Grayscale : 65536level

Lifespan : 100000hrs at 50%brightness

Service : Back

Contact Now

P3.91 Indoor Full color LED Display Specification

NO: Product Name Specification
1 Pixel Pitch 3.91mm
2 Pixel Configuration 1R1G1B/SMD2121 Black lamp
3 Density 65,536 pixel/m2
4 Moduel Size(L×W)mm 250mm×250mm
5 Cabinet Size(L×W×H)mm 500mm×1000mm×90mm
6 Module Resolution 64×64
7 Cabinet Resolution 128×256
8 Driving Method 1/16 Scan
9 Driving IC MBI5124 or ICN 2038S
10 Brightness 1000cd/m2
11 Contrast 1000:1
12 Brightness Adjustment Auto and Manual
13 Power Consumption Max Power:＜600W
14 Average power: ＜200W
15 Module Weight 0.52kg
16 Color Temperature 9500K—11500K
17 Horizontal Viewing Angle 160º
18 Vertical Viewing Angle 120º
19 Signal Processing 10 or 14bit
20 Grey Processing 1024×1024×1024
16834×16834×16834
21 Control Distance cable100m,Multimode500m,Single mode 2km
22 Frame Frequency 65 Hz
23 Refresh Rate >1920Hz
24 Control Mode Synchronous/Asynchronous
25 The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
26 Users can choose the recommended curve or adjust it based on actual situation
27 MTBF >50000 hours
28 Life Span 100,000 Hours
29 Operating Temperature Working : -20 - 65 ℃
30 Storage : -40 - 85 ℃
31 Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
32 Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
33 Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
34 Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
35 Power Supply AC 110-220V
36 Protection dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

Advantages:

1. High-strength and precision die-cast aluminum cabinet, seamless installation.

2. Ultra light and ultra thin, it is more convenient transport and save shipping cost.

3. Unique design, easy to assembly and disassembly.

4. Two side quick lock, which makes screen a better flatness and stable.

5. Adopted pure black leds, high contrast ratio, pictures more clear and vivid.

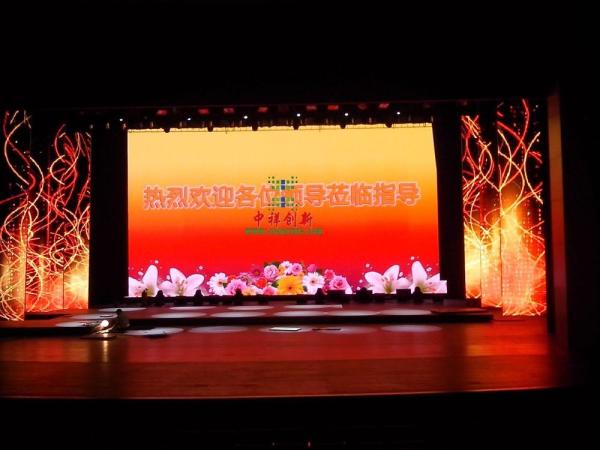

Product effect

Rental 1000cd/m2 P3.91 Indoor Full Color LED Display 200W

Rental 1000cd/m2 P3.91 Indoor Full Color LED Display 200W

Rental 1000cd/m2 P3.91 Indoor Full Color LED Display 200W

Rental 1000cd/m2 P3.91 Indoor Full Color LED Display 200W
